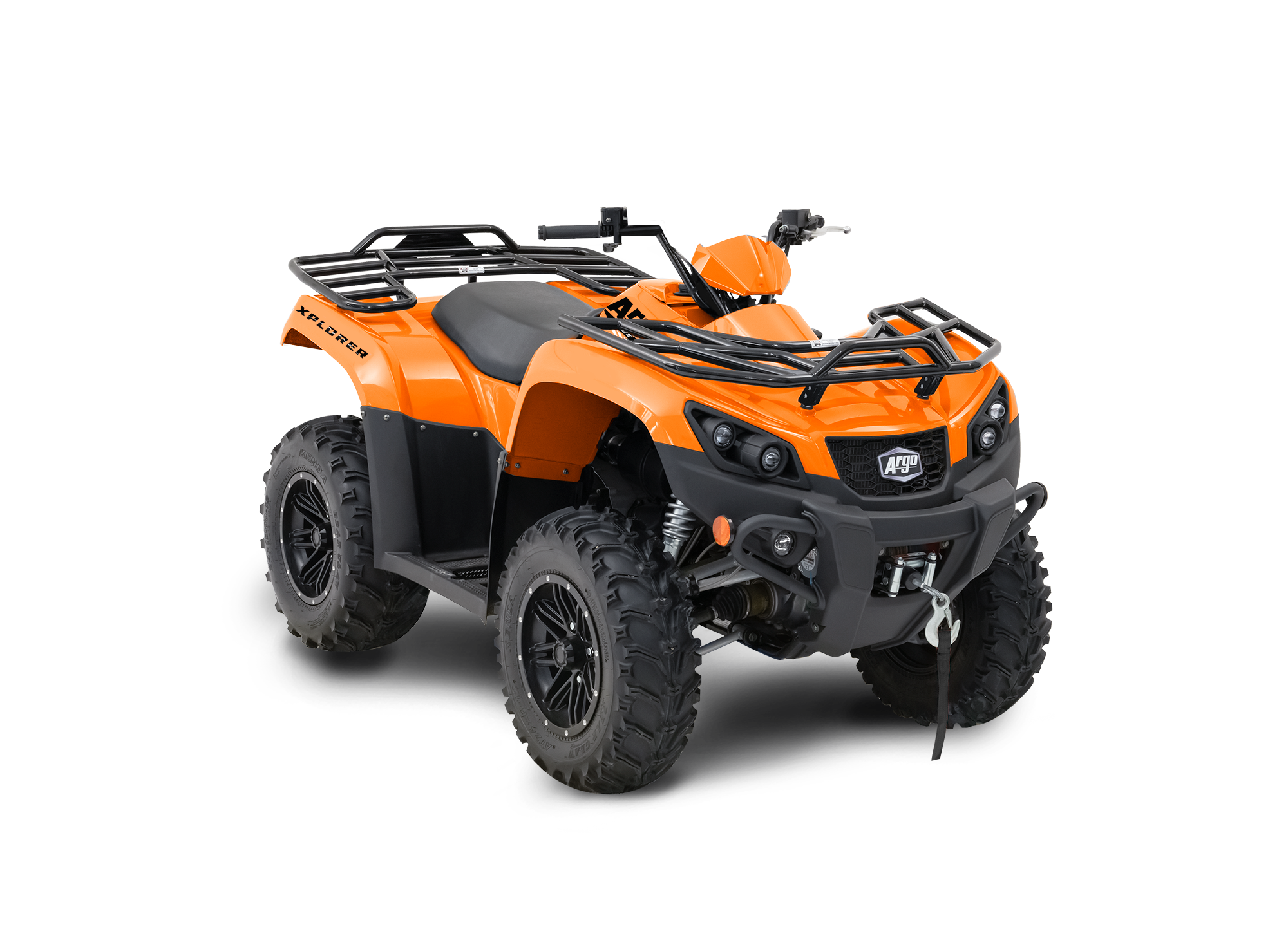

Argo Xplorer XR 500 SE

Payment as Low as: $103.37/mo*

Plus Tax. 60 Months, 1.99% APR. $500.00 Down Payment.
View Disclaimer

MSRP:   $6,699.00

$300.00 Savings

Price:    $6,399.00

* Plus Applicable Charges

Highlights


Smithtown, NY
In Stock
New
Argo
Xplorer XR 500 SE
GREY
ATV
ATV
443cc

RECENTLY VIEWED

info specifications
  •  It’s time you rev up a new 2024 Xplorer XR 500 SE and let your thumb experience a throttle instead. Hit the trail and learn why outdoor enthusiasts, young and old, love riding and riding and riding.


  • The Xplorer XR 500 SE provides durability and reliability with high-quality standard features, including our powerful 443cc liquid-cooled engine with EFI, performance clutching, engine braking, 24" tires with aluminum rims, a durable 3,000 lb. winch and premium painted plastic body panels. Go make a lifelong connection with reality and mud. No Wifi required.

Specifications

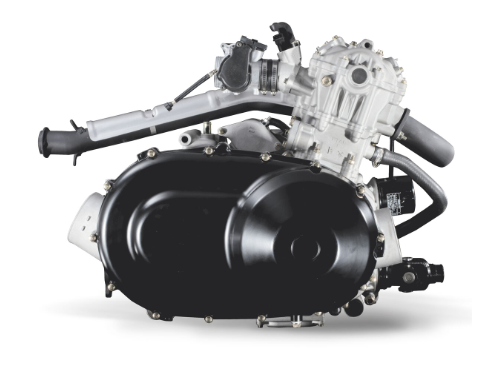

DISPLACEMENT 443CC
ENGINE STROKE 4-STROKE
FUEL SYSTEM EFI
COOLING SYSTEM LIQUID
BORE X STROKE 89 X 71.2 MM
COMPRESSION RATIO 9.1:1
START METHOD ELECTRIC START
IGNITION ECU
OVER RIDE BUTTON STANDARD
TRANSMISSION TYPE CVT AUTOMATIC
FINAL DRIVE SHAFT DRIVE
DIFFERENTIAL FUNCTION FRONT DIFFERENTIAL

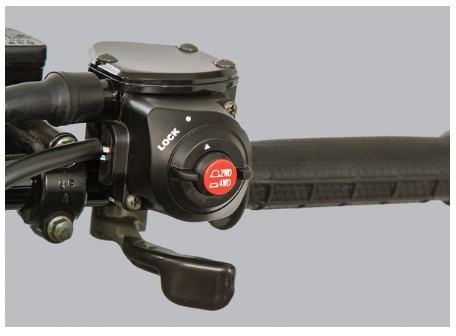

DRIVE SYSTEM TYPE ELECTRONIC 2WD/ 4WD /LOCK
ELECTRIC DIFF LOCK YES
GEAR SELECTION H/L/N/R
ENGINE BRAKING SYSTEM (EBS) STANDARD
LENGTH 75 IN (1,905 MM)
WIDTH 48.4 IN (1,230 MM)
HEIGHT 47.6 IN (1,210 MM)
SEAT HEIGHT 33.2 IN (843 MM)
GROUND CLEARANCE 10.2 IN (260 MM)
GROUND CLEARANCE 10.2 IN (260 MM)
TOWING CAPACITY 985 LBS (447 KG)
DRY WEIGHT 627 LBS (284 KG)
FUEL TANK CAPACITY 4.0 GAL (15.0 L)
RIDER CAPACITY 1

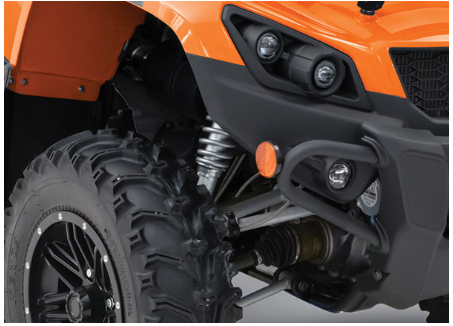

SUSPENSION - FRONT INDEPENDENT DOUBLE A-ARM
SUSPENSION - REAR INDEPENDENT DOUBLE A-ARM
SUSPENSION TRAVEL - FRONT 7.5 IN (190 MM)
SUSPENSION TRAVEL 7.5 IN (190 MM)
BRAKE - FRONT DUAL HYDRAULIC ​​DISC
BRAKE - REAR HYDRAULIC ​DISC
FOOT BRAKE STANDARD

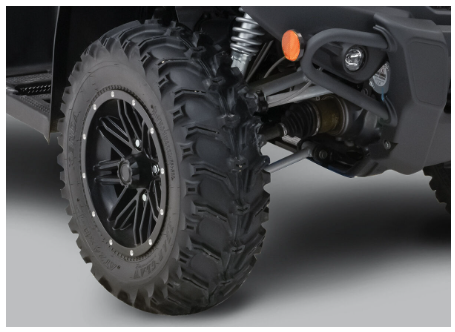

TIRE SIZE (FRONT) AT24X8-12
TIRE SIZE (REAR) AT24X10-12
BATTERY 12V 18ah AGM

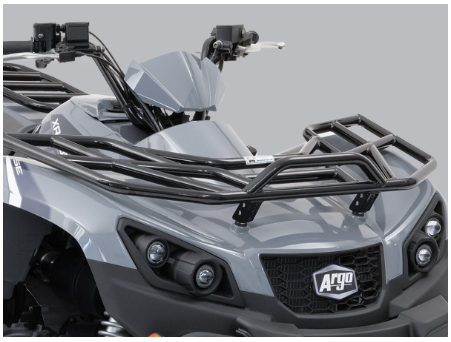

FRONT RACK 75 LB (34 KG)
REAR RACK 150 LB (68 KG)

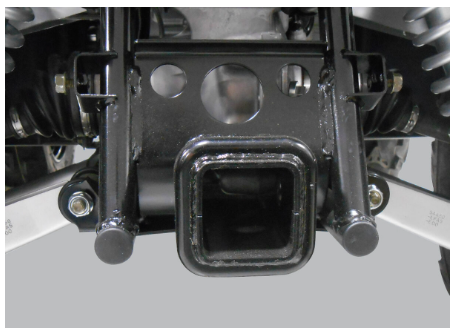

HITCH STANDARD/2" RECEIVER

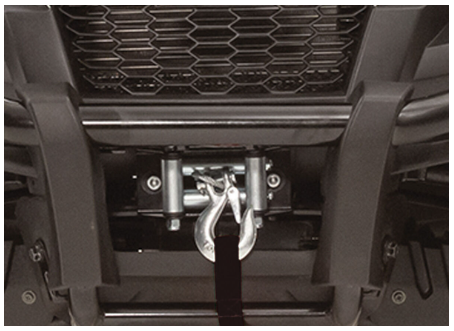

WINCH 3,000 LB WINCH
DAYLIGHT STRIP RUNNING LIGHTS
SKID PLATE PLASTIC
STORAGE UNDER SEAT
LIGHTING DUAL 12V 35W HIGH/LOW BEAM, DUAL WITH BRAKE LIGHT
COLOR PAINTED FLAME ORANGE OR PAINTED GRAPHITE GREY METALLIC

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
