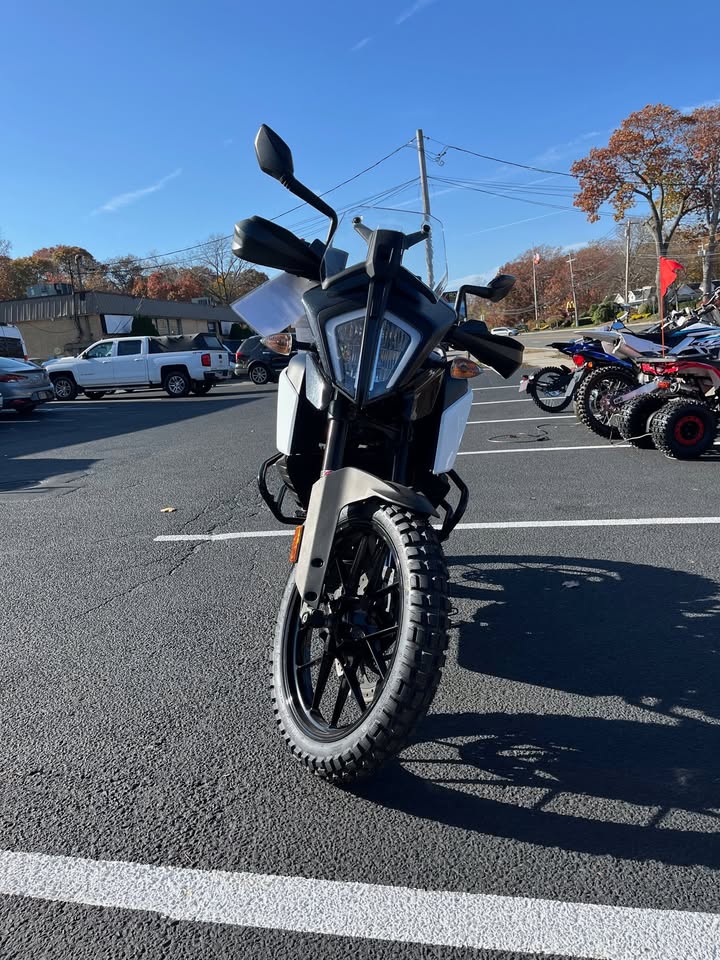

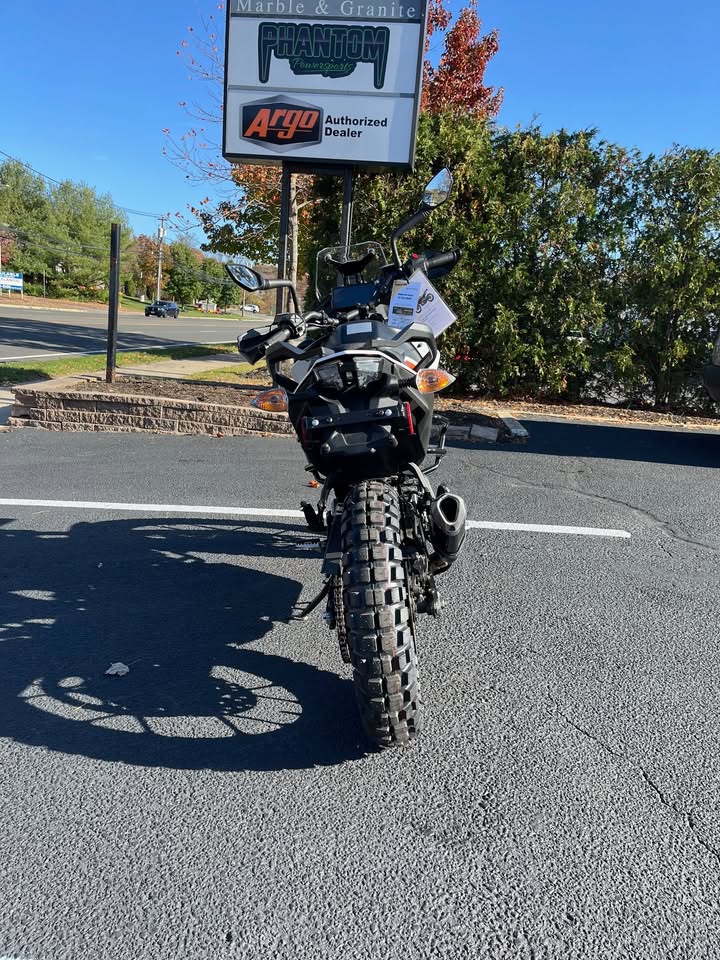

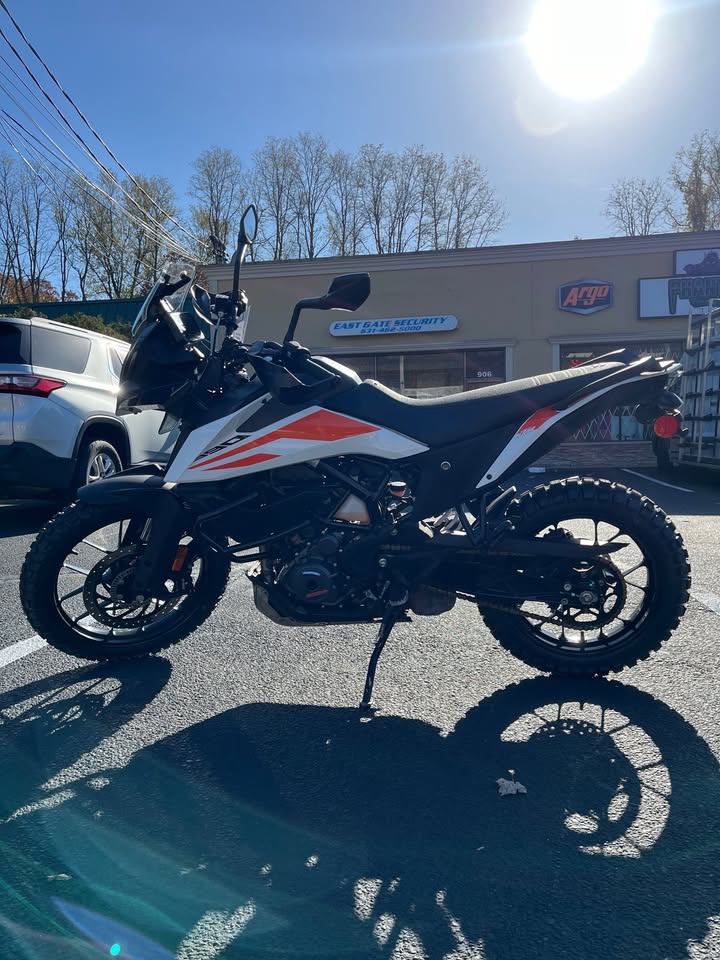

2020 KTM 390 Adventure

ENGINE
Type: Liquid-cooled, four-stroke single-cylinder
Capacity: 373.2cc
Bore x stroke: 89mm x 60mm
Engine management: Bosch EFI with 46mm throttle body

PERFORMANCE
Claimed maximum power: 44hp (32kW) at 9000rpm
Claimed maximum torque: 37Nm at 7000rpm

TRANSMISSION
Type: Six-speed
Final drive: Chain
Clutch: PASC slipper

CHASSIS AND RUNNING GEAR
Frame: Chromium-Molybdenum steel trellis frame, powder coated
Front suspension: WP APEX 43mm, 170mm travel
Rear suspension: WP APEX monoshock, 177mm travel
Front brakes: 320mm discs with Brembo four-piston radial caliper, ABS
Rear brake: 230mm disc with Brembo twin-piston caliper, ABS
Tyres: Continental TKC 70

DIMENSIONS AND CAPACITIES
Claimed dry weight: 158kg
Seat height: 855mm
Wheelbase: 1430mm
Fuel capacity: 14.5 litres/3.5 litres reserve
